HZS120 PLANT

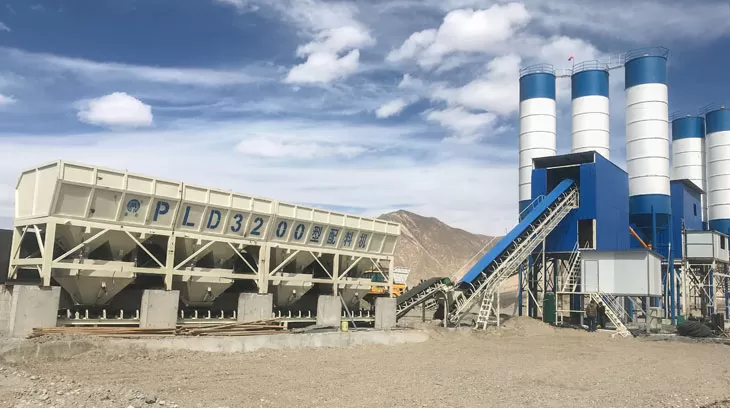

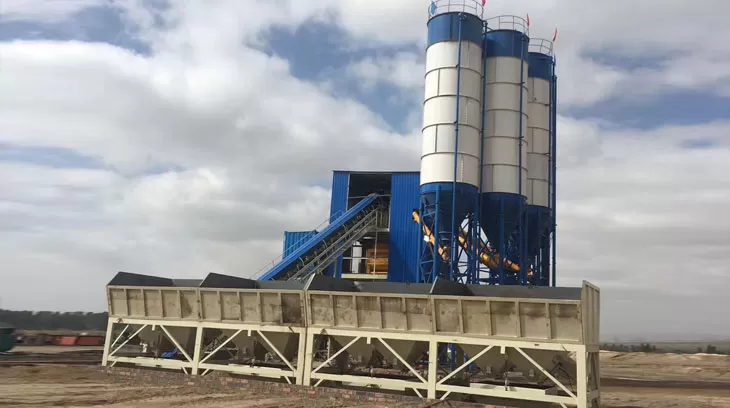

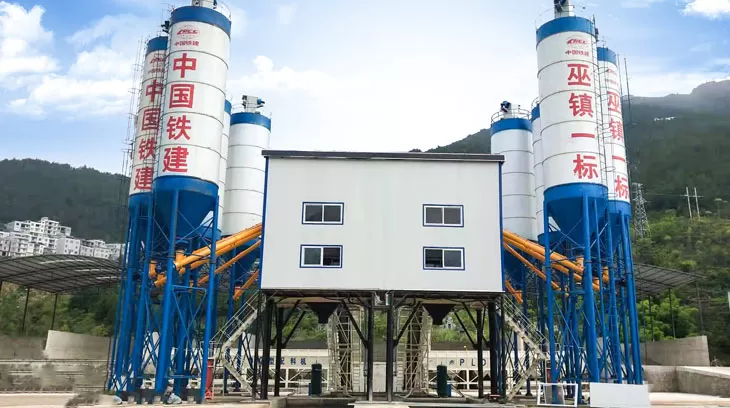

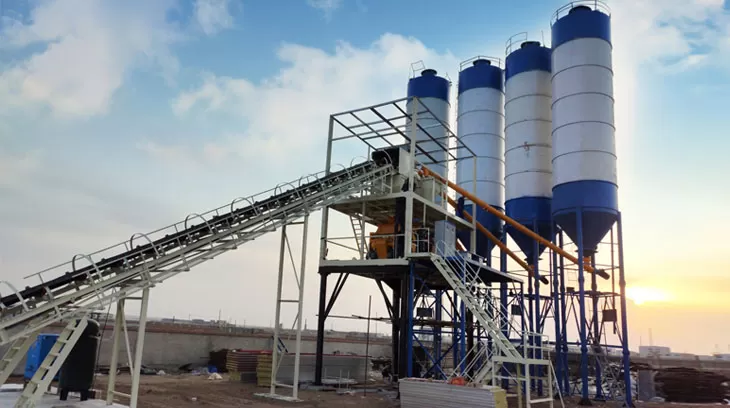

The HZS120 concrete batching plant, also known as a 2 cubic meter mixing plant, has a theoretical production rate of 120m3/h. It is equipped with a JS2000 compulsory dual-horizontal-shaft concrete mixer with a nominal capacity of 2000L, and a batching machine called PLD3200. The complete equipment set includes the dual-horizontal-shaft mixer, batching machine, cement silo, spiral conveyor, conveyor belt, and a computer control room.

This mixing plant can produce various types of concrete, such as plastic and dry-hard concrete, with high production efficiency and short mixing time. It has an aesthetically pleasing appearance and is widely used in large and medium-sized construction projects, road and bridge construction, as well as in precast concrete product manufacturing plants. It is an ideal equipment for producing commercial concrete.

Description of the HZS120 concrete batching plant system:

• 1.The star gear reducer is compact, efficient, and highly reliable.
• 2.The lining plate and blades are made of high-chromium wear-resistant cast iron, with a well-designed angle, ensuring good mixing effect, high speed, and long service life.
• 3.The four-axis end is equipped with a fully automatic sealed oil injection system.
• 4.The discharge gate is controlled by a hydraulic oil pump, with three stop positions and a manual opening, producing no noise.
• 5.The plant is designed with a heavy-duty structure, providing excellent shock absorption.

Technical Specifications
