Continuous Mixing Plants

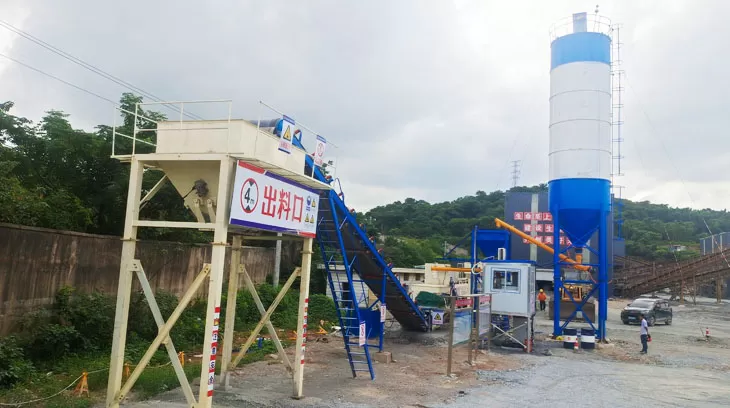

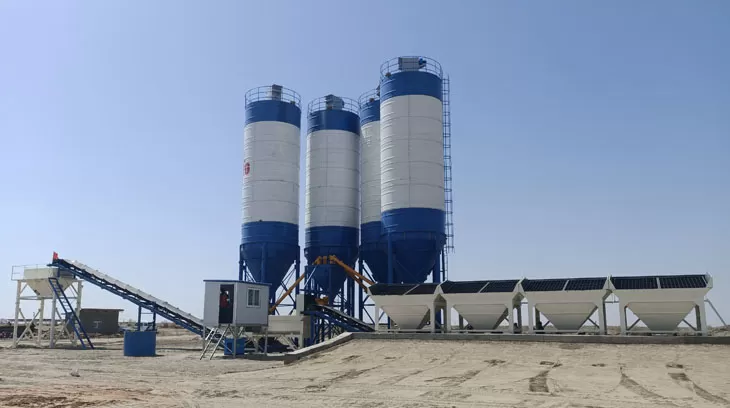

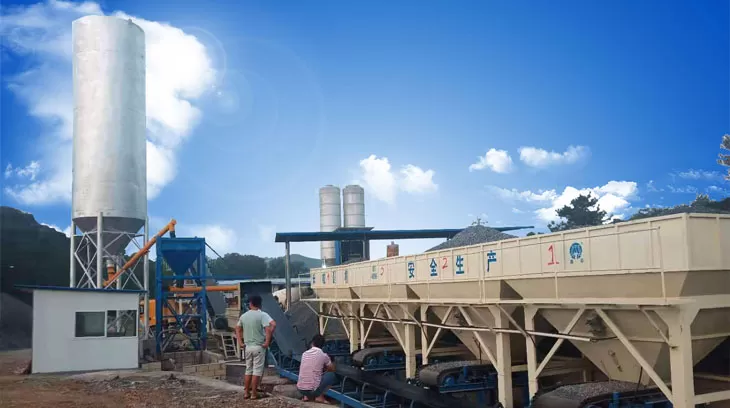

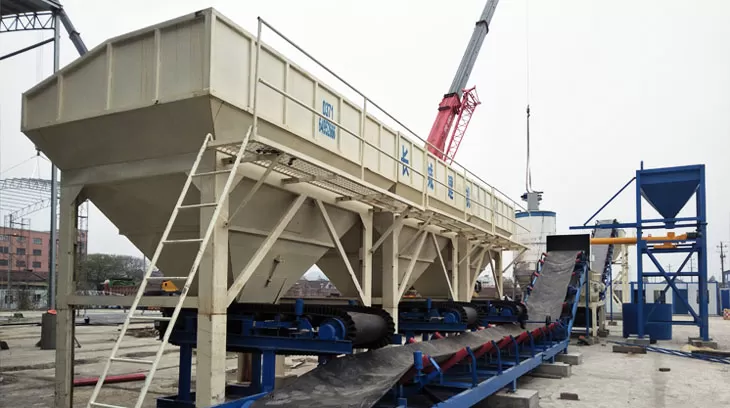

The stabilized soil mixing plant is a carefully designed volumetric measurement variable frequency speed control equipment by Heysun. This equipment is an economical and practical equipment for stabilizing soil mixing in concrete production plants. It has a rated production capacity of 300-800 tons per hour and adopts computer dynamic and metering (or volumetric) technology. The plant offers advantages such as accurate measurement, high productivity, and stable and reliable performance. It is suitable for large-volume continuous operations and is primarily used in the construction of high-grade highways, urban roads, airports, ports, and other projects requiring stable base materials. The stabilized soil mixing plant is used to mix various materials into stabilized soil, and it includes cement tanks, metering and conveying equipment, and mixing devices. Construction of the cement-stabilized soil layer is best organized in late spring or during seasons with higher temperatures.

The advantages of the stabilized soil mixing plant are as follows:

• Cost-saving and high efficiency: It adopts new domestic and international mixing technologies, motor reducers, and double-horizontal shaft continuous mixers. The mixing shaft uses shaft-end sealing technology to effectively prevent bearing wear caused by slurry leakage. It ensures high production efficiency, cost savings, and substantial returns on investment.

• Environmentally friendly: It uses high-energy top dust collectors and closed dust removal systems. The cement discharge port forms negative pressure to prevent cement leakage during the unloading process. The belt conveyor can be designed as a closed system according to customer needs, reducing aggregate spillage.

• Smart technology: It is equipped with an operation control cabinet and an operating room. It offers both manual and automatic modes of operation. It achieves high automation and full-scale automated production. It features a backend automatic feeding system that integrates material collection, distribution, storage, and feeding functions.

• Modular design: It is user-friendly and easy to maintain. The installation between modules is convenient, and automation control helps save labor costs. The entire machine is easy to maintain and repair. The belt conveyor is equipped with double-sided walkways and maintenance platforms, making it more user-friendly for operation and maintenance.

• Accurate measurement: The accuracy is less than 1%, complying with national standards. The weighing hoppers provide accurate measurement for powder and liquid materials, with an accuracy of up to 1%.

• Cement silo: It meets industry standards, with a steel plate and stiffener structure for the silo body and legs made of standard welded pipes for sturdiness and safety. It features a screw conveyor feeding design, speed-adjustable frequency metering impeller feeder, and material level sensing device to monitor material usage in the silo.

Technical Specifications
